High-Capacity Filter Cartridges for Critical Fluid Processing

Shanghai SINAP, a global MBR membrane manufacturer, offers the High-Capacity Depth Filtration Cartridges. We are a trusted Depth filtration cartridges supplier dedicated to enhancing fluid quality. This technology is vital for beverage clarification filter cartridges in the food and drink sector. Our commitment is to provide reliable food grade liquid filtration solutions that meet the highest regulatory standards.

Quality Assurance and Compliance

SINAP guarantees consistent quality through advanced, highly automated production. All raw materials, including high-purity cellulose and inorganic filter aids, undergo strict quality control procedures. This precision ensures every cartridge delivers stable performance. The material purity makes these filters suitable for industrial wastewater treatment solutions and all sensitive processing areas. The PE frame is engineered with a high negative charge load to enhance particle capture.

Range and Scalability

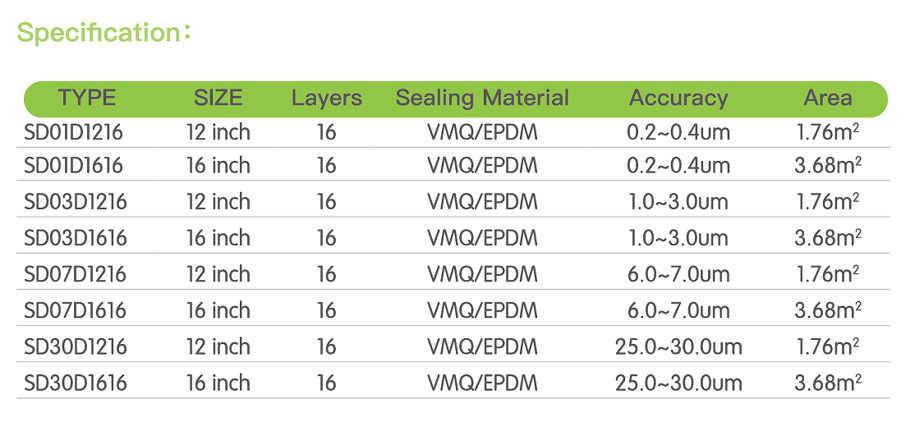

Our product line includes eight standard models, varying in size and filtration accuracy. Sizes are available in 12 inch and 16 inch diameters. Filtration accuracy ranges from 0.2 to 30.0 microns. Each unit features VMQ EPDM sealing material for chemical resistance. This extensive range complements our core business in Flat sheet MBR module and Membrane bioreactor technology. We offer specific solutions, from the fine 0.2 micron High-flow depth filter to the coarser 30.0 micron pre-filter.

Defined Operating Parameters and Connections

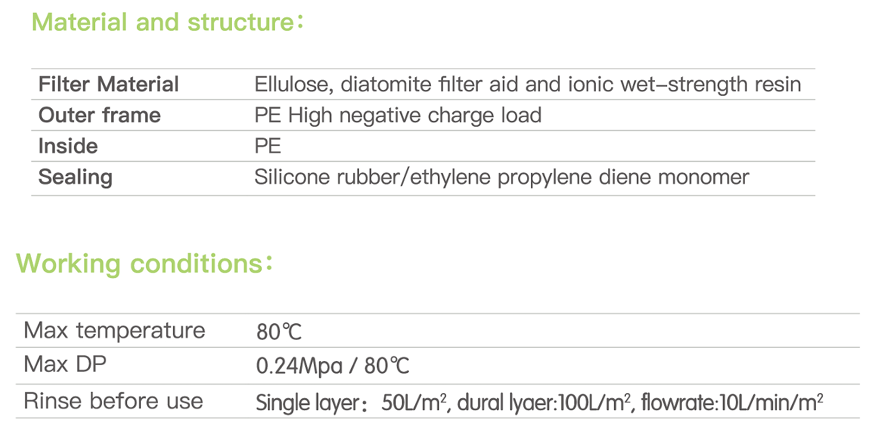

Cartridges operate reliably up to 80 degrees Celsius. The maximum differential pressure allowed is 0.24 MPa at 80 degrees Celsius. Before use, a mandatory rinse procedure is required. This ensures maximum efficiency from the start. All connection ports, including Inlet, Outlet, and Gauge Port, use standardized 1.5 inch connections with 304 stainless steel clamps, simplifying system integration. The Air valve is a 1/4 inch NPTF connection.
